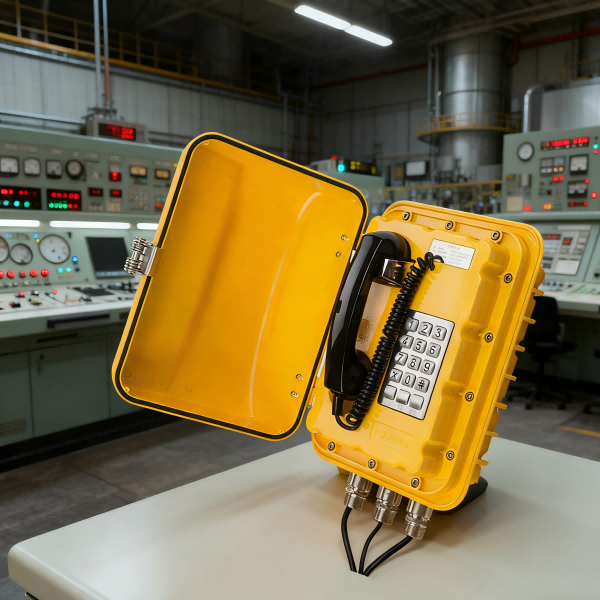

Choosing the correct telephone for a nuclear power plant is a critical decision. It directly ensures safety and reliable communication within these complex facilities. An industrial telephone must withstand extreme conditions and perform flawlessly when needed most. This careful selection process safeguards personnel and operations.

Key Takeaways

• Nuclear power plants need special telephones. These phones must work in harsh places. They face radiation, heat, and electrical noise.
• These telephones must be very strong. They need to resist damage. They also connect to other plant systems for safety.
• Choosing the right phone is important. It keeps workers safe. It also helps the plant run well.

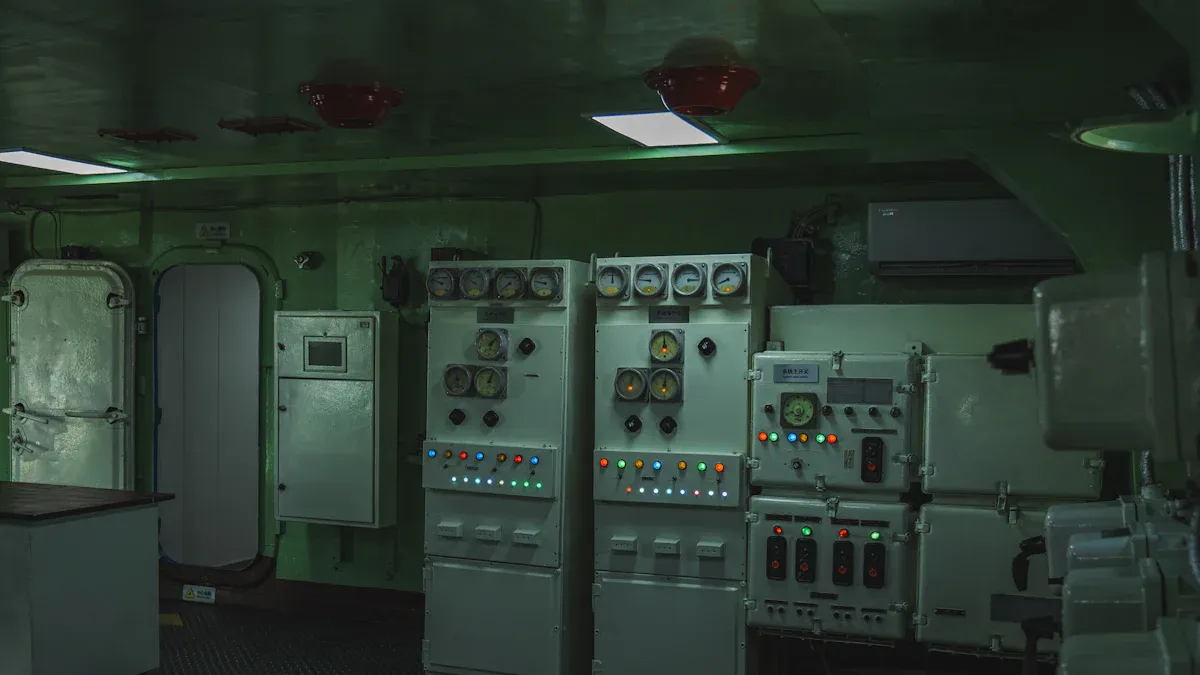

Understanding Communication Demands in Nuclear Power Plants

Nuclear power plants have unique communication needs. These needs go beyond typical industrial settings. They require systems that perform perfectly under extreme pressure.

High-Reliability Requirements for Safety Systems

Communication systems in nuclear plants must work without fail. They support critical safety functions. Poor communication causes significant stress for plant operators. This stress impacts their ability to perform well. Reliable and accurate communication helps prevent human error. This is especially true during unusual operating conditions. Controlling communication quality is vital to minimize mistakes.

Environmental Challenges: Radiation, Temperature, and EMI/RFI

Nuclear plants present harsh environments. Thick concrete, rebar, and steel make up plant structures. These materials block wireless signals. This creates “dead zones” where communication is difficult. Equipment also faces radiation exposure. Most commercial electronics survive only 500 to 1000 rads. Radiation-hardened electronics, however, can withstand over 1,000,000 rads. High temperatures and electromagnetic interference (EMI/RFI) also challenge communication devices.

Equipment Type	Radiation Survival Limit (rads)
Most Commercial Electronics	500 to 1000
Most Radiation-Hardened Electronics	> 1,000,000

Regulatory Compliance and Safety Standards

Nuclear power plants must follow strict rules. These rules come from various regulatory bodies. Communication systems, including every industrial telephone, must meet these high safety standards. Compliance ensures the plant operates safely and securely.

Emergency Preparedness and Crisis Communication

Effective communication becomes even more critical during emergencies. It helps coordinate responses and protects personnel. Reliable communication prevents human error during these stressful times. A robust communication infrastructure is key for crisis management.

Key Features for Nuclear-Grade Industrial Telephones



Selecting an industrial telephone for a nuclear power plant means looking for specific features. These features ensure the phone works well in tough conditions. They also help keep communication clear and reliable.

Durability and Ruggedization (IP Ratings, Impact Resistance)

Telephones in nuclear plants must be tough. They face high humidity, dust, vibration, and even vandalism. A good industrial telephone has high IP protection, often IP66 with a gasket. This means it resists dust and water. These phones are usually made from light alloy. They also need to be shock and vibration proof. This protects them from frequent movement and impacts. The hookswitch design should have no moving parts. This helps it work in dusty or dirty areas. Bright colors, like yellow, make the phone easy to spot.

Radiation Hardening for Component Longevity

Nuclear environments expose electronics to radiation. This can damage regular components. “Nuclear hardness” describes a system’s ability to survive radiation. Manufacturers achieve this through special materials and design. RPV steels and stainless steels are examples of materials used. They resist radiation effects and maintain strength. For electronic chips, designers use process hardening. This means they modify manufacturing to use radiation-resistant materials. They also use design hardening. This includes features like redundancy and error correction. Robust packaging, often ceramic, protects against stress and temperature changes.

EMI/RFI Shielding for Clear Communication

Nuclear plants have many electrical systems. These systems can create electromagnetic interference (EMI) and radio-frequency interference (RFI). This interference can make phone calls unclear. Good EMI/RFI shielding is crucial. It protects the phone’s internal circuits. This ensures clear sound quality, even when other equipment is running nearby. Clear communication is vital for safety.

Redundancy and Fail-Safe Power Mechanisms

Reliability is key for nuclear plant telephones. Redundancy means having backup systems. If one part fails, another takes over. Fail-safe power mechanisms ensure the phone still works during a power outage. Some phones draw power directly from the telephone network. Others might have battery backups. These features guarantee communication remains active during critical moments.

Hazardous Area Certifications (ATEX, IECEx)

Certain areas within a nuclear plant can have explosive gases or dust. Telephones in these zones need special certifications. ATEX and IECEx are common certifications. They show the phone is safe to use in hazardous environments. Many industrial telephone models are ATEX approved for Zone 1 and Zone 2. These zones have a high risk of explosive atmospheres. This includes areas with gas groups I, IIA, and IIB.

Audio Clarity and Noise Cancellation

Nuclear plants are often noisy places. Clear audio is essential for effective communication. Telephones need excellent voice sound quality (VSQ). They should also have noise cancellation features. This helps filter out background noise. Some phones even come installed in acoustic hoods. This further improves clarity in very loud areas. A built-in ringer with a volume over 90 decibels ensures calls are heard.

Integration with PAGA, SCADA, and Emergency Systems

A nuclear plant’s communication system works best when all parts connect. Telephones must integrate with Public Address and General Alarm (PAGA) systems. They also connect with SCADA (Supervisory Control and Data Acquisition) and other emergency systems. A “Telephone and PAGA Integrated Controller” is ideal. It links fire protection, broadcasting, and telephone systems. This allows for automatic message broadcasting. A SIP server helps integrate telephones with PAGA systems. This lets them broadcast alarms across large areas.

User Interface for Stressful Conditions

During an emergency, users need to operate the phone quickly and easily. The user interface must be simple and intuitive. Large push buttons allow for quick dialing. LED indicators provide better visuals. A high visual intensity LED shows incoming calls clearly. These features help operators use the phone effectively, even under stress.

The Strategic Selection Process for Plant Telephones

Selecting communication equipment for a nuclear power plant involves more than just picking a durable phone. It requires a strategic, multi-step process. This process ensures every chosen device meets the highest safety, reliability, and regulatory standards.

Assessing Plant-Specific Needs and Environmental Zones

Before choosing any equipment, plant operators must first understand their specific communication needs. Each nuclear plant has unique layouts, operational procedures, and environmental conditions. They need to identify areas with high noise, extreme temperatures, or potential radiation exposure.

💡 Tip: Performing plant electromagnetic (EM) surveys helps identify potential interference sources. This step establishes recommended emissions and immunity levels based on the survey data. It also helps develop guidelines for equipment susceptibility tests. Analyzing this data allows for defining specifications to obtain additional emissions data. This validates guidelines and creates a basis for equipment emissions testing. Sometimes, bounding the highest observed emissions from nuclear plants can even eliminate the need for site-specific surveys.

Understanding these zones helps define the type of telephone required for each location. For example, a control room telephone has different requirements than one in a turbine hall.

Defining Technical Requirements and Performance Criteria

Once they understand the plant’s needs, teams must define clear technical requirements. This includes specifying performance criteria for each communication device. They consider factors like audio clarity, noise cancellation capabilities, power redundancy, and integration with existing systems. For instance, an industrial telephone must meet specific IP ratings for dust and water ingress. It also needs to withstand impact and vibration. These detailed specifications guide the selection process.

Evaluating Manufacturers and Supplier Reputation

Choosing the right manufacturer is as important as choosing the right phone. Plant operators should evaluate potential suppliers based on their experience in nuclear or other high-reliability industries. They look for a proven track record of quality, reliability, and adherence to strict standards. A reputable manufacturer offers robust products, excellent customer support, and a long-term commitment to their technology. They also provide necessary certifications and documentation.

Conducting Thorough Testing and Validation

Rigorous testing and validation are non-negotiable steps. Before full deployment, every communication system undergoes extensive trials. These tests confirm the equipment performs as expected under various operational and emergency scenarios.

🧪 Testing Protocols:

• Validation Experiments for Communication Protocols: Researchers validated a standard communication protocol for emergency situations in nuclear power plants. They used experiments involving 10 licensed NPP Main Control Room (MCR) operator teams. These experiments compared the new protocol against conventional ones. They focused on time taken, operators’ grasp of safety-related parameters, and communication efficiency/clarity.
• Human Factors Investigation for Control Room Systems: A large-scale human factors investigation was part of the ‘Integrated Final Control Room System Validation’ for the Olkiluoto 3 (OL3) nuclear power plant. This study evaluated six human factors aspects: task performance, human errors, situation awareness, communication, coordination, and mental workload. They tested four operating scenarios in a full-scope simulator with different shift crews.
• Scenario-Based Comparison for Interface Redesign: An interface redesign prototype improved graphical layout and integrated procedures, automation, and alarm systems. Experts validated this prototype through opinion and a scenario-based comparison.

These validation processes ensure the system works reliably when it matters most.

Considering Lifecycle Costs and Longevity

The initial purchase price represents only one part of the total cost. Plant operators must consider the entire lifecycle cost of the communication system. This includes installation, maintenance, potential upgrades, and expected lifespan. A cheaper system might require more frequent repairs or replacements, leading to higher long-term expenses. Investing in high-quality, durable equipment often proves more cost-effective over the plant’s operational life. Longevity also reduces the need for disruptive replacements.

Ensuring Regulatory Compliance and Documentation

Nuclear power plants operate under stringent regulatory frameworks. Every communication system must comply with these rules. This includes regulations like NERC CIP and NRC 5.71. These regulations require comprehensive cybersecurity controls.

📜 Key Documentation Requirements:

• Security Management: Establish policies, procedures, and responsibilities.
• Personnel Security: Conduct background checks and provide security training.
• Physical and Electronic Security Perimeters: Implement access controls.
• System Security Management: Manage vulnerabilities, patch systems, and implement security monitoring.
• Incident Response and Recovery: Develop plans for cyber incidents.
• Configuration Management and Change Control: Ensure system integrity.

Maintaining compliance demands significant staff effort for documentation, assessments, and audits. Automating evidence collection helps continuously gather compliance data, reducing manual effort. Automating assessments and audits streamlines the process. It generates audit-ready reports with minimal manual intervention. Regulatory Guide (RG) 5.71, “Cyber Security Programs for Nuclear Power Reactors” (Revision 1), provides guidance for meeting cybersecurity requirements. This guidance applies to digital computer and communication systems and networks under 10 CFR Section 73.54. It requires nuclear power plants to document a process within their cybersecurity plans. This process demonstrates “high assurance” that these systems are adequately protected from cyberattacks. “High assurance” means a reasonable assurance of adequate protection.

---

Choosing the correct telephone critically impacts nuclear power plant safety and operational efficiency. Prioritizing durability, radiation resistance, regulatory compliance, and seamless integration is essential. A robust communication infrastructure safeguards personnel and operations under the most demanding conditions. It builds confidence within society and enhances safety performance.

FAQ

Why are regular phones not suitable for nuclear power plants?

Regular phones cannot withstand the harsh conditions. Nuclear plants have radiation, extreme temperatures, and electromagnetic interference. They also need high durability and reliability for safety.

What does “radiation hardening” mean for a telephone?

Radiation hardening makes components resistant to radiation damage. Manufacturers use special materials and designs. This ensures the phone works reliably in radioactive environments for a long time.

How do these specialized telephones connect with other plant systems?

These phones integrate with PAGA, SCADA, and emergency systems. This allows for seamless communication. They can broadcast alarms and coordinate responses during critical events.
