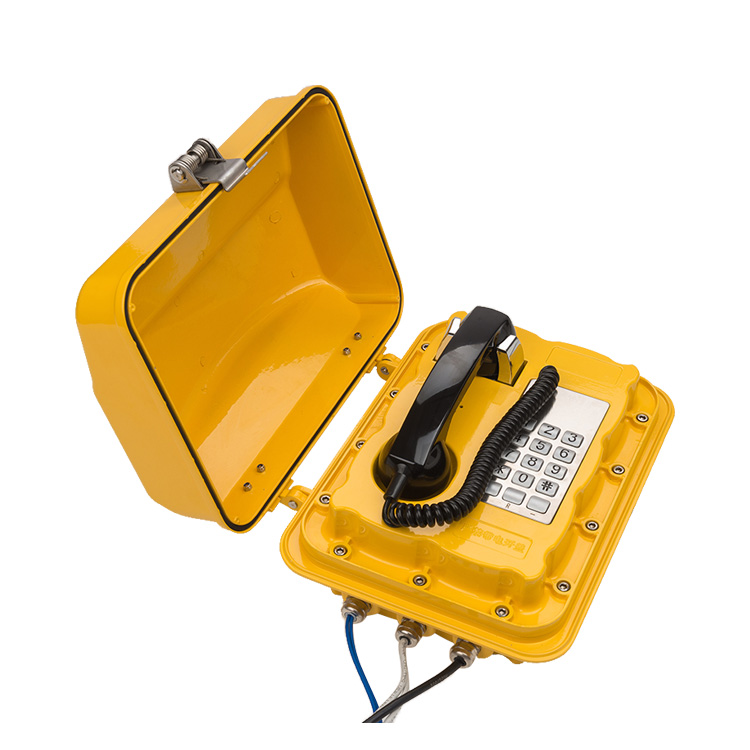

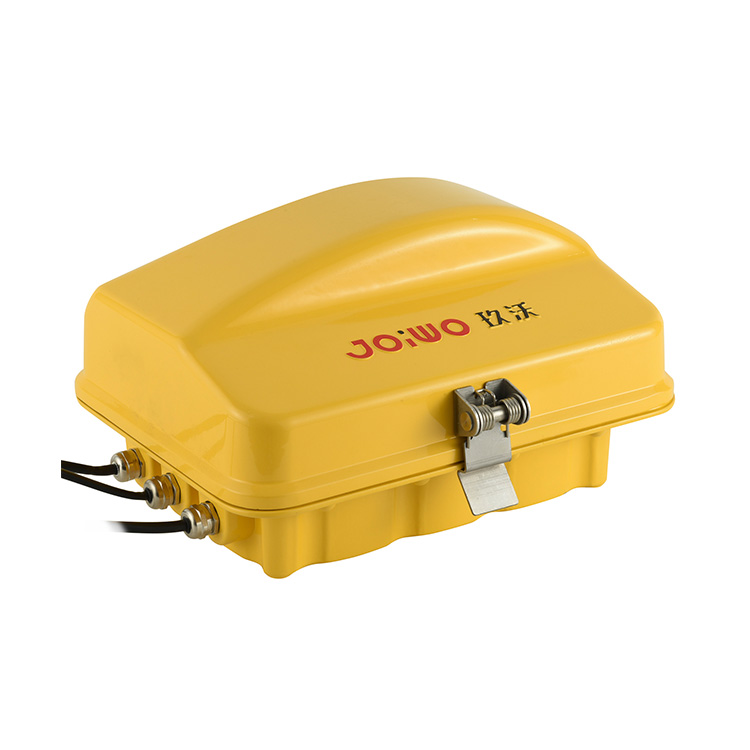

It is an industrial heavy duty waterproof telephone which is fully contained within a corrosion resistant cast aluminium alloy weatherproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.The case is very thick, closed to explosion-proof requirements.
With the production test with many tests like elextroacoustical test,FR test,High&Low temperature test,working life test etc.,each waterproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of waterproof telephone for you.
For voice communication in tough and hazardous environments where dependability, efficiency, and safety are of the utmost significance, industrial waterproof telephones were developed.such as a dock, power plant, railway, roadway, or tunnel.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Standard Analogue phone.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Water proof Protection class to IP67.
5.Waterproof zinc alloy full Keypad with function keys which can be programmed as speed dial/redial/flash recall/hang up/mute button.
6.Wall mounted, Simple installation.
7.Connection: RJ11 screw terminal pair cable.
8.Sound level of ringing:over 80dB(A).
9.The available colors as an option.
10. Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant.
This Waterproof Telephone Is Very Popular For Mining,Tunnels , Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.
| Item | Technical data |
| Power Supply | Telephone Line Powered |
| Voltage | 24–65 VDC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | >80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Lead Hole | 3-PG11 |
| Installation | Wall-mounted |
If you have any color request, let us know the Pantone color No.
85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
